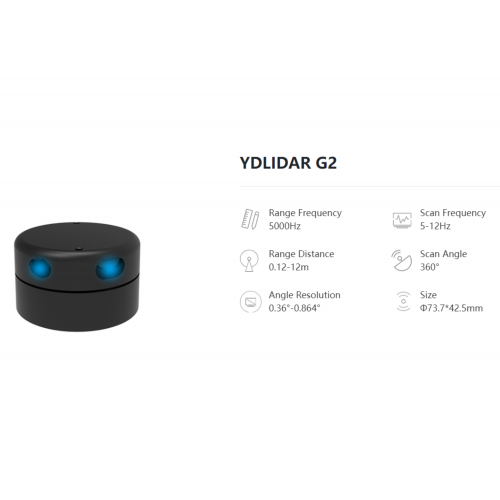

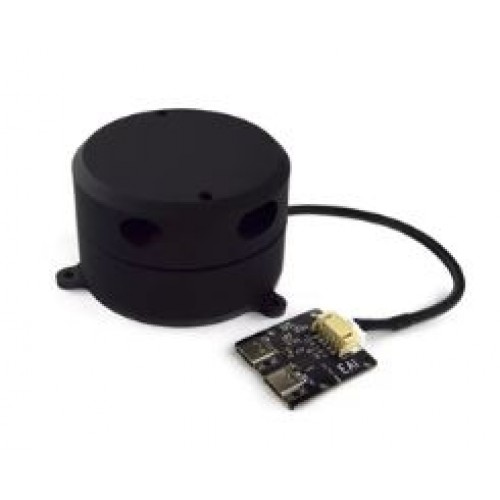

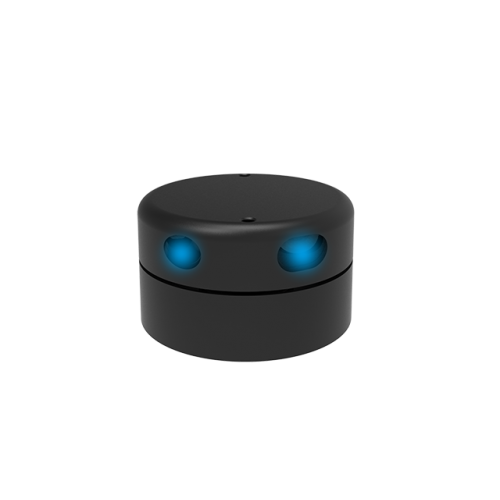

YDLIDAR G2 is a 360 degrees 2D LiDAR (hereinafter referred to as G2) developed by the EAI team. Based on the principle of Triangulation, it is equipped with related optics, electricity, and algorithm design to achieve high-frequency and high-precision distance measurement.
The mechanical structure rotates 360 degrees to continuously output the angle information as well as the point cloud data of the scanning environment while ranging.
DATA SHEET : https://www.generationrobots.com/media/YDLIDAR_G2_Datasheet.pdf
| Features | |
| Distance | 12m |
| Model Number | G2 |
| Operating Current | 500mA |
| Operating Temperature | 50 ℃ |
| Operating Voltage | 5.2 V |
| Resolution | 0.864 (Frequency-12Hz) |
| Shipping Dimensions | 13 × 10 × 8 cm |
| Shipping Weight | 0.404 kg |
| Type | LiDAR |
YDLIDAR- G2
- Brand: LIDAR
- Product Code: KT2300407
- Availability: 2-3 Days
-
₹16,518.82
- Ex Tax: ₹13,999.00
- Price in reward points: 140
